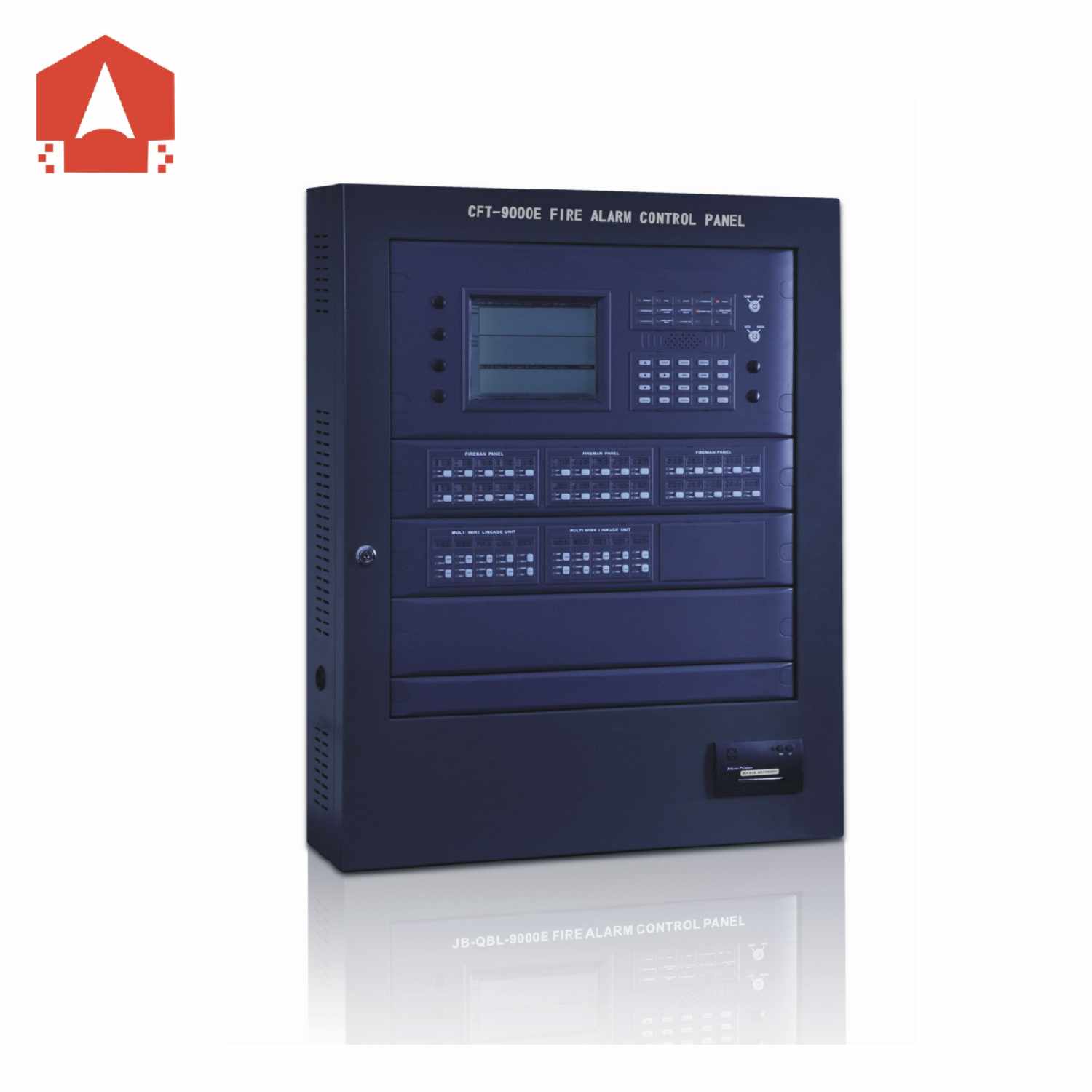

fire alarm control panel：CFT-9000-6

The panel is an addressable fire detection and indication control panel designed to meet all the requirements of EN54.

• Certificate EN541-2/4
• Modular type panel, 6 Loop Panel ，324 addresses per loop
• 2000 Cause-and-Effect scan be programmed
• Color Graphics LCD 320X240 displaying fire fault and messages
• Up to 64 panels or repeaters in one network, also used for software monitoring function
• USB Port for programming and firmware upgrade
• 10000 Event Log Memory
• 4 Programmable Relay output, 4 Programmable sound outputs
• Supports CFT protocol
