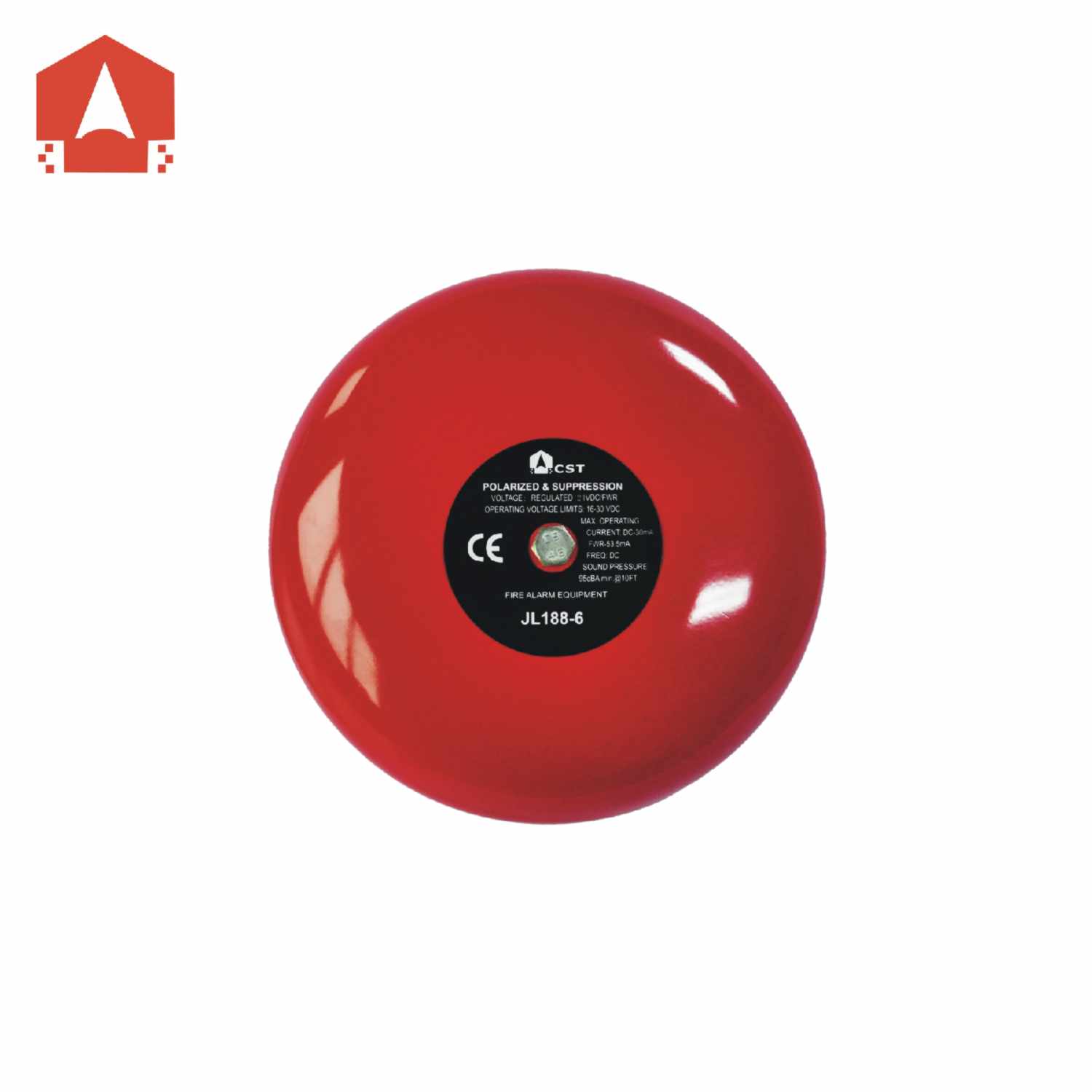

6 inch Bell：JL188-6

General Description

The JL188 Electric bell of notification appliances offers a wide range of Sound, for wall and ceiling applications, indoors and outdoors. They are designed to be used in 24 volt DC systems.

Features and Benefits

• Compatible with all the conventional fire alarm control panel
• High sound level up to 95dB
• Easy installation baracket included
• Steel material

Technical Specifications

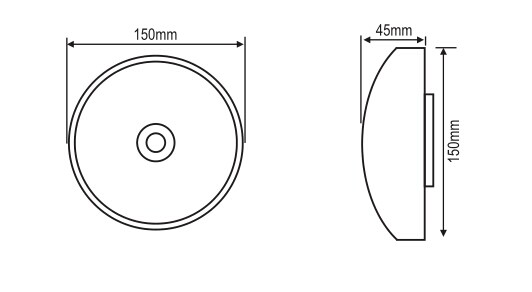

• Dimensions: Diameter150mm, Height 45mm(JL188-6)
• Weight: Net Weight 580g, Gross Weight 650g
• Operating Temperature Range: -10°C to 50°C
• Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensin
• System Voltage (nominal): 24 VDC (16V~ 30VDC)
• Alarm Current: 70 mA @ 24 VDC
• Alarm Sound Intensity: Minimum 95dB

Installation Guidelines

All wiring must be installed in compliance with the Nationa Electrical Code, applicable state and local codes, and any special requirements of the local Authority Having Jurisdiction.

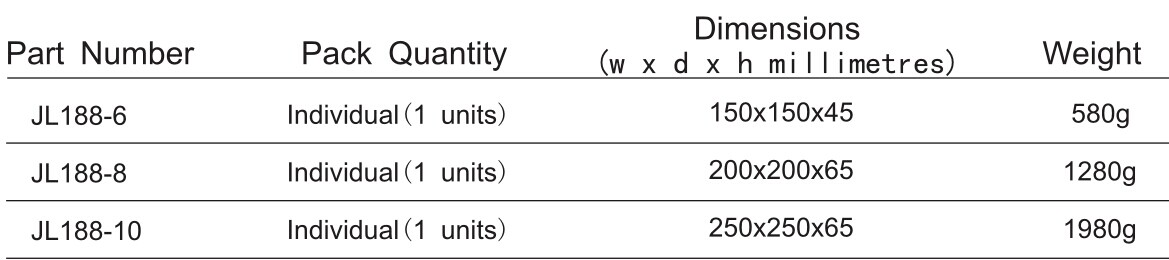

Ordering Information
