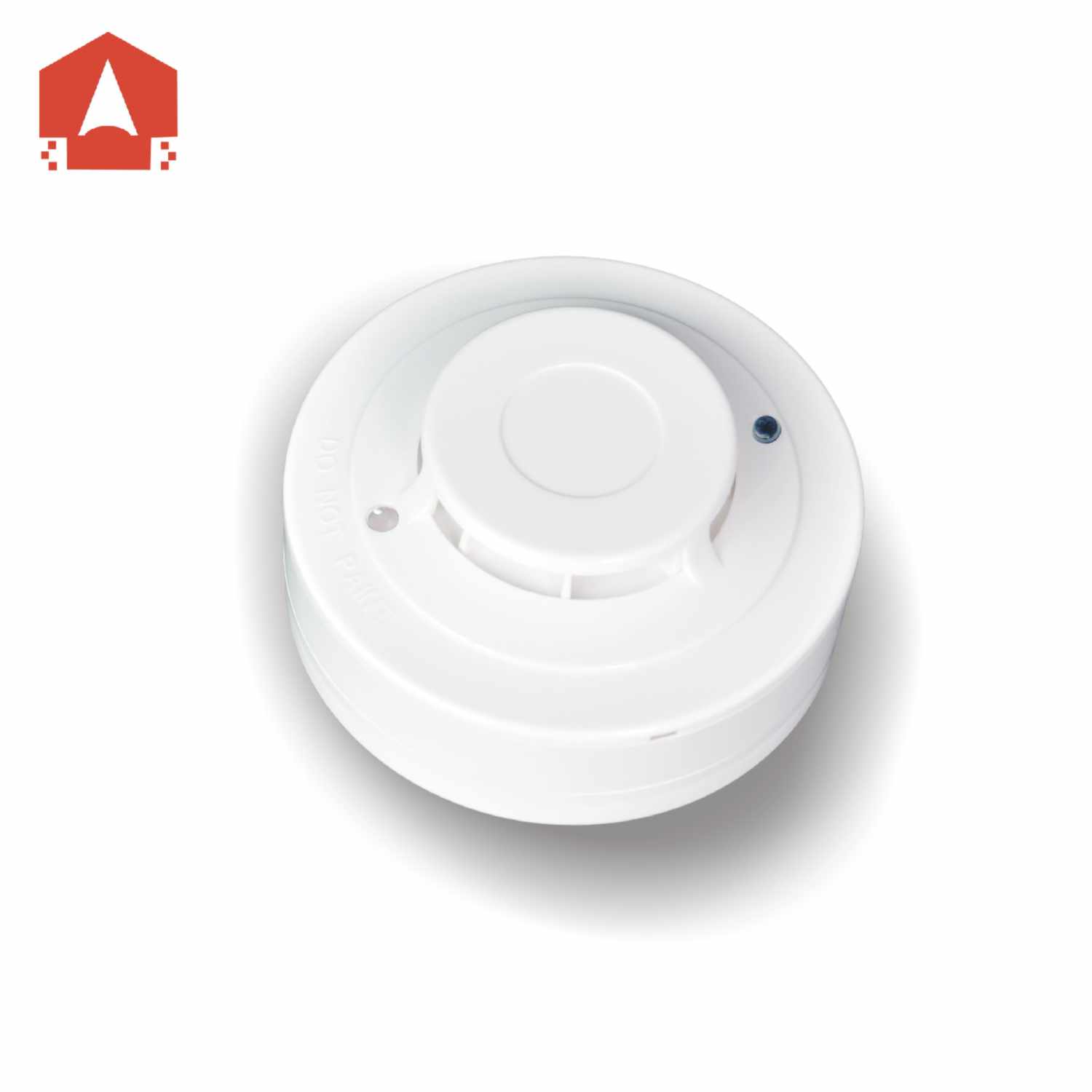

Conventional Smoke Detector:YT102C

Conventional Smoke Detector:YT102C

General Description

  The device is photoelectronic detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panel. Two LEDs on each detector provide local 360° visible alarm indication. They flash every 3~5 seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The detector can be resetonly by a momentary power interruption.

Features and Benefits

  • Compatible with all the conventional fire alarm control panel
  • Unpolarized wire input
  • Wide range of operating voltages
  • Unique optical sensing chamber
  • Built in microprocessor intelligent software
  • Two LEDs blink standby, provide 360° visibility
  • Insect-resistant screening
  • Twist-on mounting base with tamper lock
  • Drift compensation and smoothing algorithms
  • Remote Indicator LED can be connected

Technical Specifications

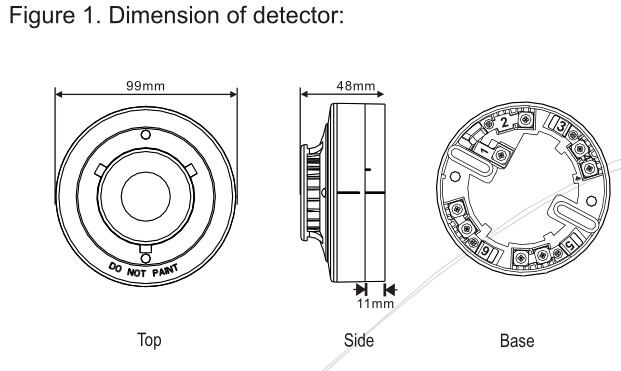

  • Diameter: 99mm
  • Height (including mounting base): 48 mm
  • Weight: 155 g
  • Operating Temperature Range: -10°C to 50°C
  • Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
  • Latching Alarm: Reset by momentary power interruption

Electrical Ratings

  • System Voltage (nominal): 24 VDC (9V~ 28VDC)
  • Standby Current: 120 μA @ 24VDC
  • Alarm Current: 20 mA @ 24VDC

Installation Guidelines

  All wiring must be installed in compliance with the Nationa Electrical Code, applicable state and local codes, and any special requirements of the local Authority Having Jurisdiction.

Conventional Smoke Detector:YT102CConventional Smoke Detector:YT102C

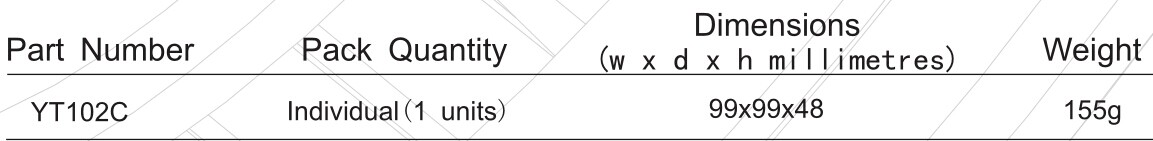

Ordering Information

Conventional Smoke Detector:YT102C
